Curtain Wall Window Series // Commercial Zenith150 Curtain Wall Window

No.Zenith150
The Zenith150 Curtain Wall has been developed to provide a robust and flexible
Curtain Wall solution for small to mid-sized curtain wall projects.
Air Tightness
Level 5
Water Tightness
Level 5
Wind Pressure Resistance
Level 10
Thermal Insulation
1.5 W/(㎡·K)
Sound Insulation
42db
GET A QUOTE
Add to Quote List Navegue pela lista
  • Curtain Wall Window Series // Commercial Zenith150 Curtain Wall Window,Juheintl,Commercial Zenith150 Curtain Wall Window
  • Curtain Wall Window Series // Commercial Zenith150 Curtain Wall Window,Juheintl,Commercial Zenith150 Curtain Wall Window
  • Curtain Wall Window Series // Commercial Zenith150 Curtain Wall Window,Juheintl,Commercial Zenith150 Curtain Wall Window
  • Curtain Wall Window Series // Commercial Zenith150 Curtain Wall Window,Juheintl,Commercial Zenith150 Curtain Wall Window

  • Description

  • Key Features

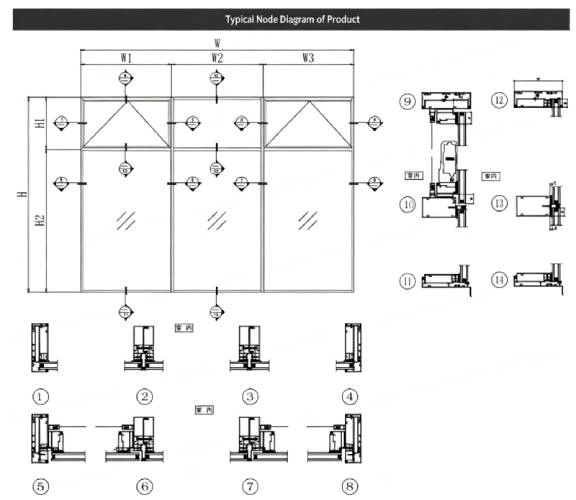

  • Typical Node Diagram

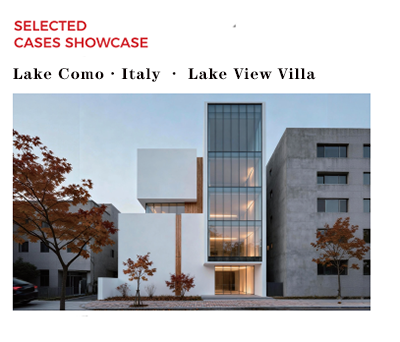

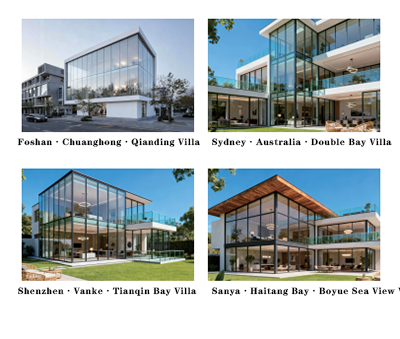

  • Project Case of 150

  • Installation & Const

1. Factory Prefabrication & Modular Installation
Fully factory-produced with on-site modular assembly, significantly shortening
construction time and ensuring easy, efficient installation.

2. Minimalist Aesthetic Structure Design
Equal-width visible frames for operable and fixed sashes, creating a seamless,
streamlined look with optimized structure, combining premium aesthetics and practicality.

3. Versatile Opening Solutions
Multiple opening modes available: top-hung, casement, sliding, intelligent hidden motor,
and manual crank operation, adaptable to diverse space requirements.

Parameter Specification
Insulation strip 20mm
Profile thickness 1.8mm-3.0mm
Frame visual surface 50mm
Visible surface of mullion 62mm-83mm
Fan visual surface 45mm
Glass specifications (frame, fan) 6mm Clear + 12A + 6mm Low-e
Accessories brand Shenzhen JINGJING
Window screen scheme Fixed screen, Folding screen
Available colors Light aluminum black, Hepburn black, Star ceramic gray, Chabadon
Suitable scenarios Balcony sealing, Villa project
Notes Electric and manual options are available
  • Factory prefabricated unit frame with high precision.
  • Screw locking strip structure, easy on-site assembly.
  • Glass can be installed internally or externally, suitable for different construction site conditions.
  • Compatible with standard silicone sealing construction.
  • Integrated facade connection with doors and windows of the same series.

Unitized Hidden-Frame High-End Curtain Wall Series

The maximum single unit height reaches 6800mm, with a unit panel width up to 1800mm. The overall facade can be designed in unlimited continuous width.All products adopt factory standardized production and prefabricated assembly construction to ensure stable and reliable quality.Both electric and manual opening modes are available for selection.
